Product details

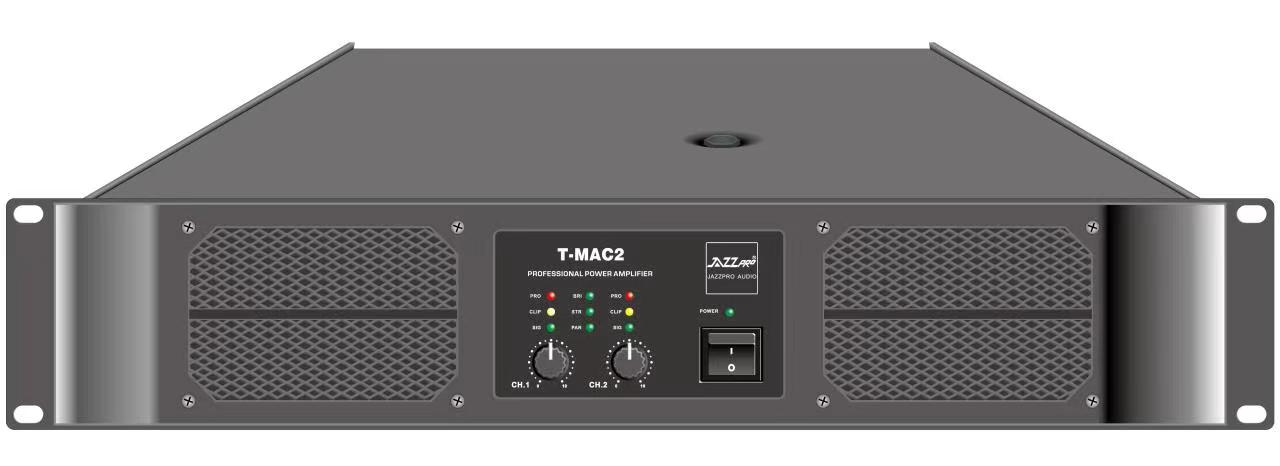

The T-series amplifiers feature a toroidal transformer-based circuit design, dual-channel power, and deliver a warm tone with powerful dynamics.
T-series amplifiers are known for their exceptional stability and consistency.
Product technical specifications
Rated power | 800W（8Ω）；1200W（4Ω） Channel-A 800W（8Ω）；1200W（4Ω） Channel-B 2400W（8Ω）Bridge Channel A+B | Signal input | 2 NEUTRIK NC3FD |
Frequency response | 20Hz-20kHz, ±0.5dB | Signal output | 2 NEUTRIK NC3MD |
Distortion level | （20Hz-20KHz for 1W）/THD:≤0.03% | Low Frequency Enhancement | According to personal preference, the low-frequency excitation function can be selected. |
Signal-to-noise ratio | （20 Hz - 20 kHz，A Weighted）：>100dB | Low-frequency cutoff | With a low-frequency cut-off switch, frequencies below 35Hz can be selected for cut-off function. |
Input Sensitivity | 0.77V | Power output | 2 NEUTRIK NL4MP+2 Link port（Red+；Black-） |
Input impedance | Balanced input 20kΩ Unbalanced input 10kΩ | Cooling system | Air cooling |
Damping coefficient | ＞240（8Ω/1kHz ） | Protective measures | Soft start protection, short circuit protection, overload protection, DC protection, overheat protection. |
Conversion rate | 15V/uS | Power requirements | Alternating Current 220V-230V/50Hz |
Start-up power consumption | ≤220V/0.6A | Weight | 26.2KG |
Static power consumption | ≤220V/0.6A | Size (mm) | W：482 D：483 H：88（mm） |
Peak program power consumption | ≤220V/6A | Channel | 2 way |
