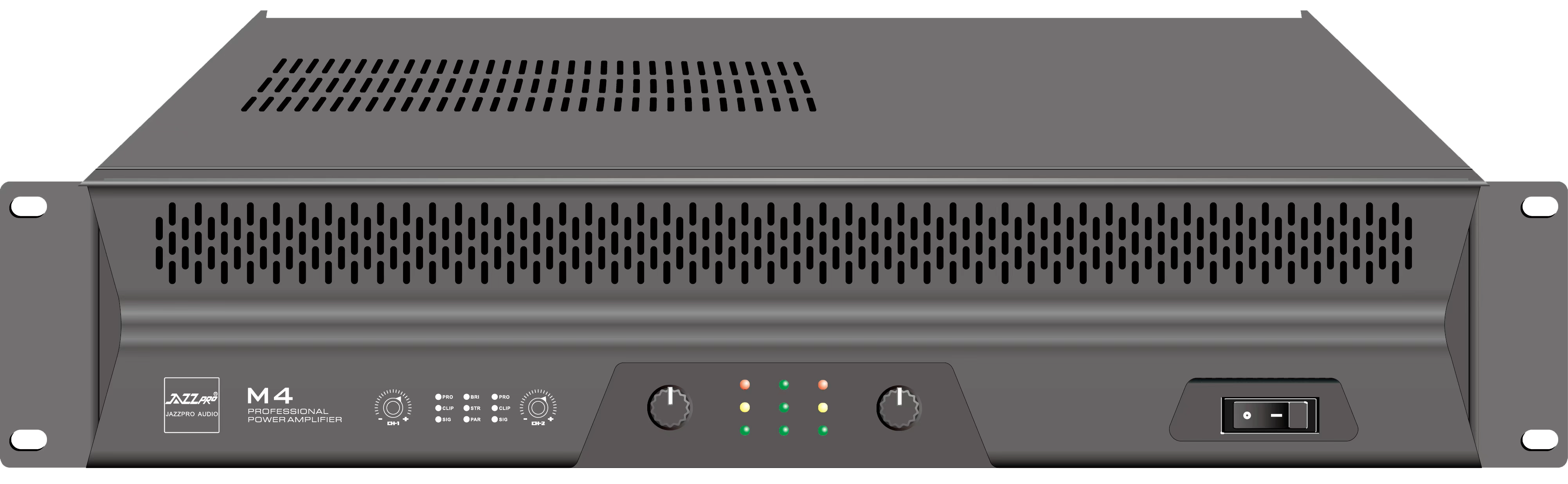

Product details
The M series and T series amplifiers both utilize a circuit design based on toroidal transformers, featuring dual-channel power, warm tone, and strong dynamics.
The M and T series amplifiers offer exceptional stability and consistency.
Product technical specifications
Rated power(EIA 1KHz1%THD) | 1200W（8Ω）；1800W（4Ω） Channel-A 1200W（8Ω）；1800W（4Ω） Channel-B 3600W（8Ω）Bridge Channel A+B | Peak program power consumption | ≤220V/5A |
Frequency response | 20Hz-20kHz, ±0.5dB | Signal input | 2 NEUTRIK NC3FD |
Distortion level | （20Hz-20KHz for 1W）/THD:≤0.03% | Signal output | 2 NEUTRIK NC3FD |
Signal-to-noise ratio | （20 Hz - 20 kHz，A Weighted）：>100dB | Power output | 2 terminal connectors (red +; black -) |
Input Sensitivity | 0.77V | Cooling system | Air cooling |
Input impedance | Balanced input 20kΩ Unbalanced input 10kΩ | Protective measures | Soft start protection, short circuit protection, overload protection, DC protection, overheat protection. |
Damping coefficient | ＞240（8Ω/1kHz） | Power requirements | Alternating Current 220V-230V/50Hz |
Conversion rate | 15V/uS | Weight | 14.2 KG |
Start-up power consumption | ≤220V/0.6A | Size (mm) | W：482 D：498 H：132（mm） |
Static power consumption | ≤220V/0.5A | Channel | 2-way |
