Product details
The low-frequency driver is mounted in a rear-firing configuration, creating a shallow horn loading at the front of the enclosure, which effectively improves the speaker's sensitivity and directivity. As a linear array speaker with a 12-inch three-way structure, it is characterized by a very high mid-high frequency density and rapid low-frequency response.
The J12CBT speaker enclosure is made of custom European grade multi-layer plywood,
and the surface is coated with a PCP (polyurea) chemical coating that fully complies with environmental protection standards.
The front of the enclosure features a 2mm thick perforated protective steel grille and is lined with multiple layers of waterproof acoustic material,
providing strong resistance to wear, water, and moisture.
Product technical specifications
Frequency response | 60Hz-20kHz（-10dB） | Input Connection | 2x Neutrik NLT4M（+1/-1） |
Nominal Directivity HxV（-6 dB) | 90°×10° | Rigging | 3-point connection |
Nominal Sensitivity ity（1W/1m） | 105dB | Bending Angle | 0°-10°，1° Enter |

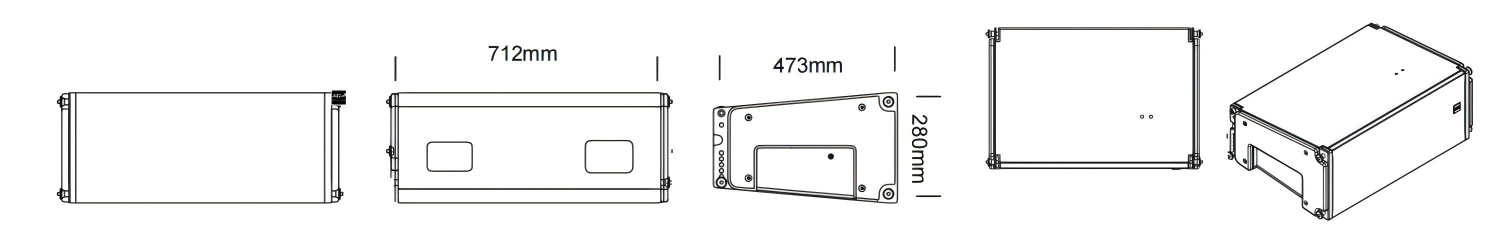

Maximum Peak SPL | 132dB/138dB（Peak） | Dimension(mm) | H/W/D（280/712/473）mm |
Power Handing(AES/Peak) | LF：500W（Rated）/2000W（Peak） MF：300W（Rated）/1200W（Peak） | Weight | 38KG |
HF：110W（Rated）/440W（Peak） | Case Material | First grade multi-layer plywood | |
Driver Components | LF：1×12”Driver MF：1×8”Driver（Coaxial） HF：1×3”Driver（Coaxial） | Surface Treatment | PCP |
Nominal lmpedance | 8Ω | Protection rating | IP54 |
