S500A

Product type: 【Sub-bass Series】
Product Profile:The S500A is a compact low-frequency speaker that delivers high sound pressure levels and can be paired with various models to form a complete sound system. The S500A has a frequency response of 35Hz to 600Hz and features a direct-radiating installation method. Its compact cavity and air spring design determine the responsiveness of the low frequencies. When combined with medium and small-sized speakers, it perfectly achieves fast sound response, with a solid, clean, and powerful sound output.
Contact us

Product details

The S500A is a 3-channel digital amplifier with DSP processing, greatly enhancing its practicality and convenience.

The power module DP2600 of the S500A adopts a Class-D + DSP combination mode, featuring 2 inputs and 4 outputs;

The power distribution consists of 2 units of 600W/8Ω and 1 unit of 1400W/8Ω, with a independently developed

software control interface that allows for easy operation via a PC.


Product technical specifications


Frequency response

35Hz -320Hz(-10dB)

Input Connection

2xNC3FAH2-2xNC3MD

Maximum Peak SPL

127dB/133dB（Peak）

DSP

2 Input/4 Output

Power Handing(AES/Peak)

600W（Rated）/2400W（Peak）

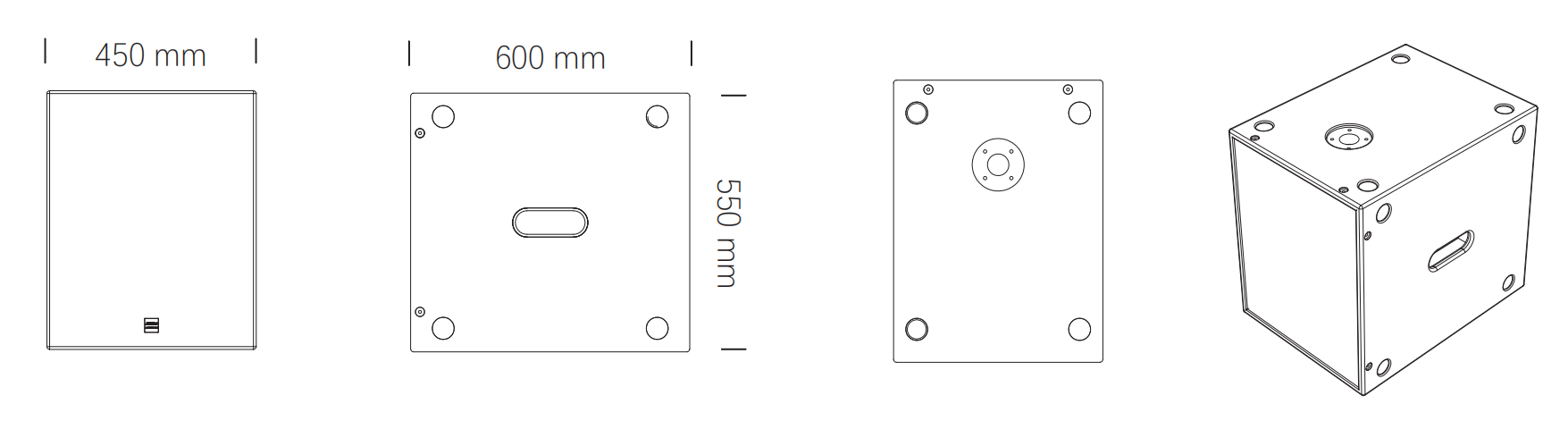

Dimension(mm)

H/W/D（550/450/600）mm

Driver Components

1×15”Driver

Weight

34KG

Amplifier module

A Channel 1×600W/8Ω

B Channel 1×1500W/8Ω

Case Material

First grade multi-layer plywood

Nominal lmpedance

8Ω

Surface Treatment

PCP

Power Supply

220V/50Hz

Protection rating

IP54
