Product details
The S800 frequency response ranges from 30Hz to 600Hz. To optimize the phase characteristics of the S6,
the S800 speaker employs a direct mounting method.
The compact cavity air spring determines the response speed of low frequencies.
When paired with the S6, this sound reinforcement system achieves a fast sound response with solid, clean, and powerful audio quality.
To facilitate the needs of mobile performances, we have also developed an active low-frequency speaker of the same size, the “S800A.”
The S800A adds a power combination module based on the S800, featuring a 3-channel digital amplifier with DSP processing,
significantly enhancing the usability and convenience for mobile performances.
The cabinet is constructed from high-grade multi-layer birch plywood, and the surface is sprayed with a waterproof polyurea coating,
allowing for all-weather outdoor use.
A bracket base is reserved at the top of the speaker, enabling easy assembly of a small system using the accessories compatible with the S6.
Product technical specifications
Frequency response | 30Hz -600Hz(-10dB) | Input Connection | 2x Neutrik NLT4M（+1/-1） |

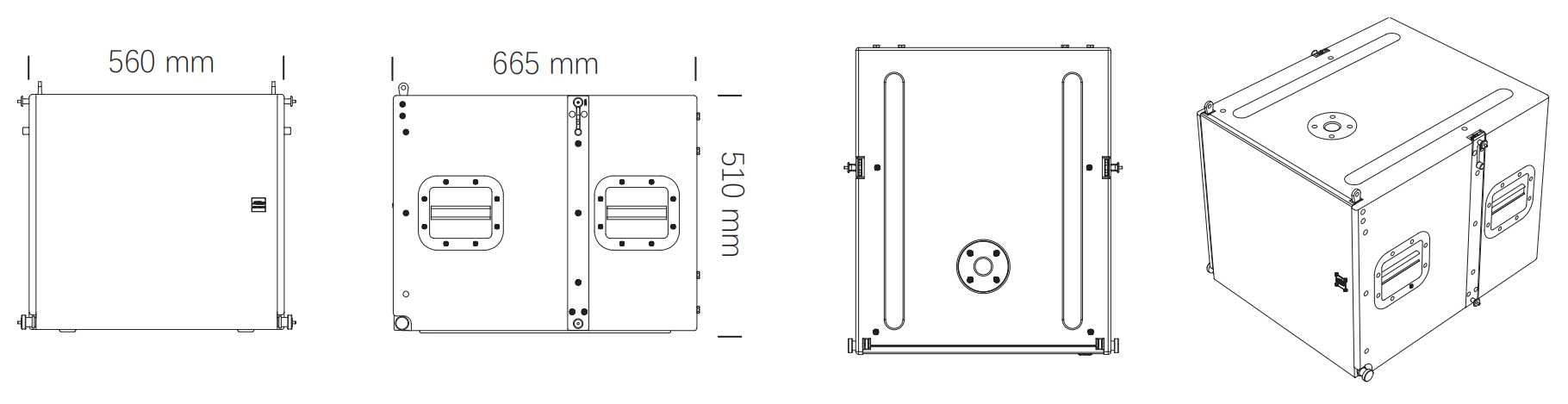

Nominal Sensitivity ity（1W/1m） | / | Dimension(mm) | H/W/D（510/560/665）mm |
Maximum Peak SPL | 127dB/133dB（Peak） | Weight | 55KG |
Power Handing(AES/Peak) | 800W（Rated）/2400W（Peak） | Case Material | First grade multi-layer plywood |
Driver Components | 1×18”Driver | Surface Treatment | PCP |
Nominal lmpedance | 8Ω | Protection rating | IP54 |
