Product details
The speaker cabinet is made of custom European-grade multilayer plywood, with a surface coated in PCP (polyurea)
chemical coating that fully complies with environmental protection standards.
The front of the cabinet features a 2mm thick perforated protective steel mesh, with multiple layers of waterproof
and sound-permeable materials inside, providing strong resistance to wear, water, and moisture.

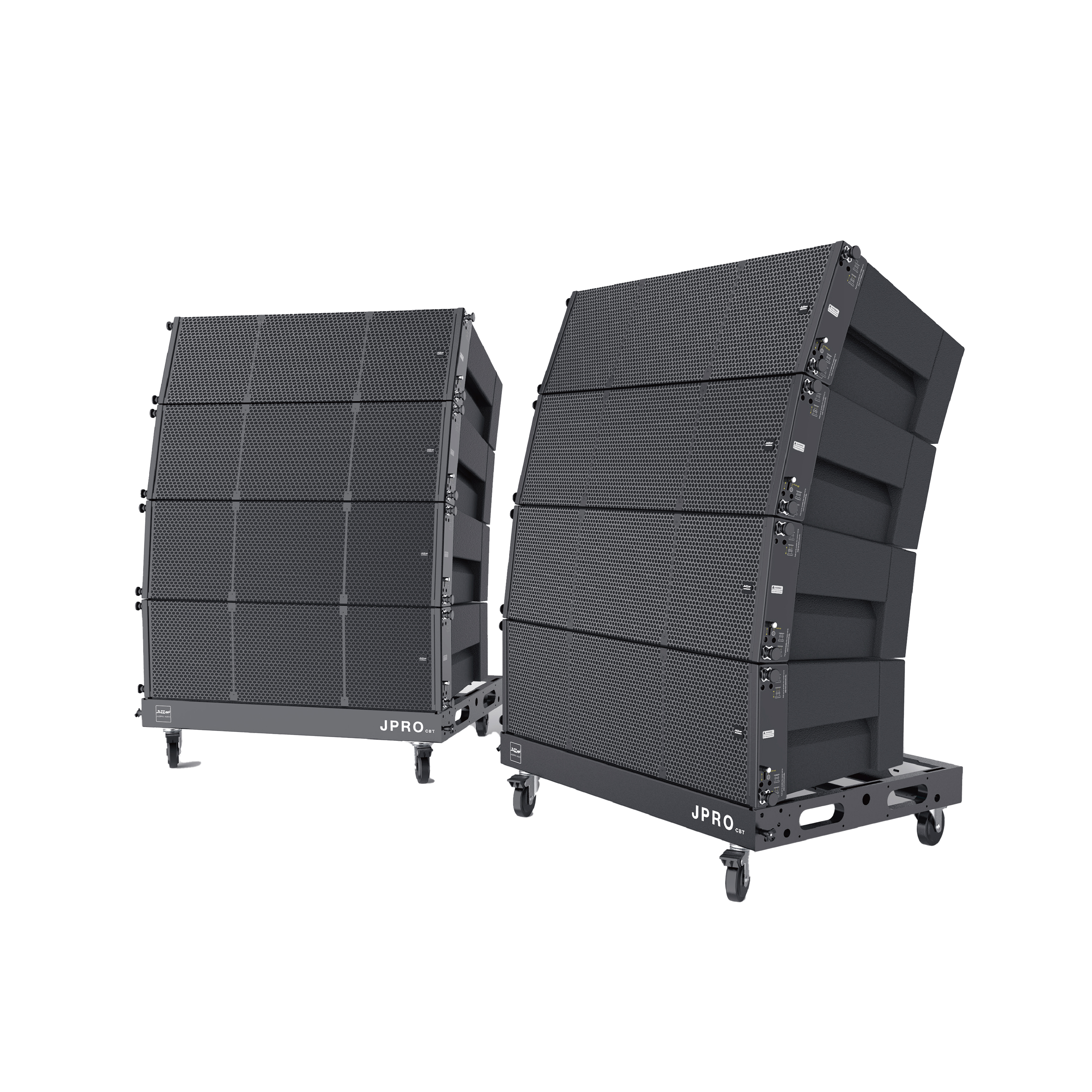

The speakers are suspended in the air using a three-point connection method, with connector components made
of thick stainless steel, allowing for a maximum connection of up to 24 units in a series.
The maximum bending angle between adjacent speakers is 8°, with a 1° increment.
Product technical specifications
Frequency response | 45Hz-20KHz（-10dB） | Input Connection | 2x WS28 NLT8M（+1/-2/+1/-4/+5/-6） |
Nominal Directivity HxV（-6 dB) | 90°×8° | Rigging | 3-point connection |
Nominal Sensitivity ity（1W/1m） | 105dB | Bending Angle | 0°-18°（1°Enter） |

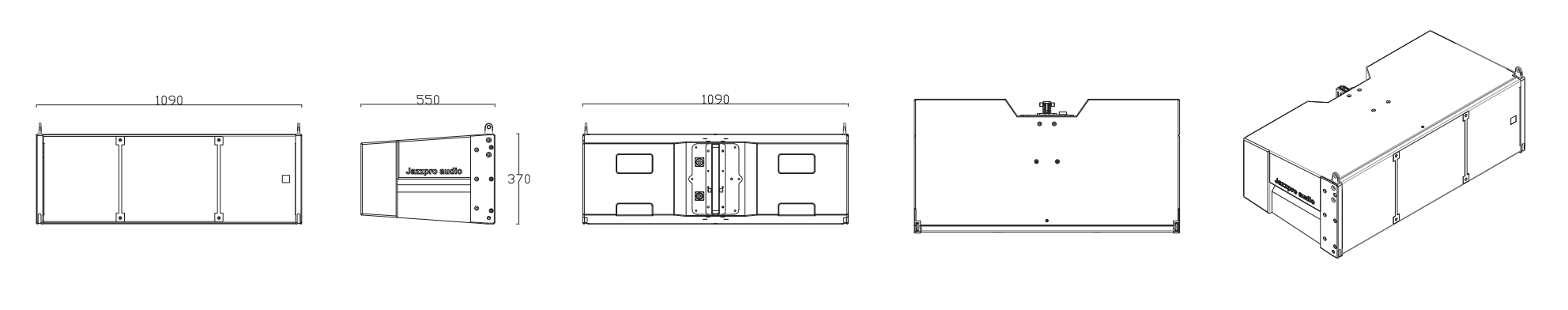

Maximum Peak SPL | 135dB/141dB (Peak) | Dimension(mm) | W/H/D（370/1090/550）mm |
Power Handing(AES/Peak) | LF：1000W（Rated）/4000W（Peak） MF：600W（Rated）/2400W（Peak） | Weight | 60KG |
HF：220W（Rated）/880W（Peak） | Case Material | Russian birch plywood | |
Driver Components | LF：2×12”Driver（External crossover） MF：2×8”Driver（Crossover） HF：2×3”Driver（Crossover） | Surface Treatment | PCP |
Nominal lmpedance | LF 8Ω（L/R）；MF/HF 8Ω | Protection rating | IP56 |
