Product details

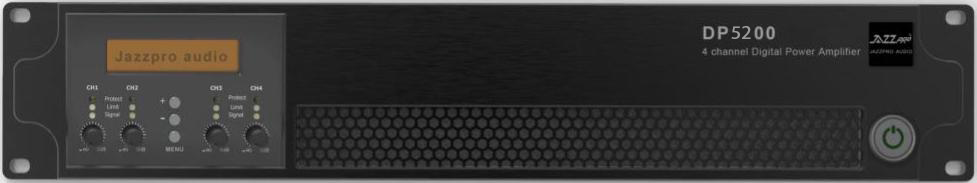

The DP series amplifiers feature a 2U chassis made of high-strength electro-galvanized steel, designed to prevent oxidation and rusting
due to long-term use in harsh environments. The front panel is made from 2mm thick steel with large-area perforations, and is equipped
with 5mm soundproofing cotton to maximize air convection management.
The dual-channel amplifier uses two independent amplification modules, while the four-channel amplifier comprises four independent
amplification modules. Each module has completely independent power rectification and amplification.
Operating voltage: AC 80V-253V, 50Hz.
Product technical specifications
Rated power | 1200W（8Ω）；2000W（4Ω） Channel-A 1200W（8Ω）；2000W（4Ω） Channel-B 1400W（8Ω）；2400W（4Ω） Channel-C 1400W（8Ω）；2400W（4Ω） Channel-D | Peak program power consumption | ≤220V/13A |
Frequency response | 20Hz-25kHz（≤0.5dB) | Signal input | 4个NEUTRIK NC3FD |
Distortion level | （20Hz-20KHz for 1W）/THD+10: <0.1% | Pattern selection | Stereo/Mono |
Signal-to-noise ratio | （20 Hz - 20 kHz，A Weighted）：>100dB | Power output | 4 NEUTRIK NL4MP |
Input Sensitivity | -3dB/-6dB/-9dB（Optional） | User Interface | Supports administrator password management, supports digital volume adjustment. |
Input impedance | Balanced input 20kΩ Unbalanced input 10kΩ | Cooling system | Air cooling |
Damping coefficient | ＞500（8Ω/1kHz ） | Protective measures | Soft start protection, short circuit protection, overload protection, DC protection, overheat protection. |
Conversion rate | 25V/uS | Power requirements | Alternating Current 180V-240V/50Hz |
Start-up power consumption | ≤220V/1.3A | Weight | 11.6KG |
Static power consumption | ≤220V/0.6A | Size (mm) | W：483 D：422 H：90（mm） |
